MS-Based Protein-Protein Interaction Analysis Service

What Is MS-Based Protein-Protein Interaction Analysis?

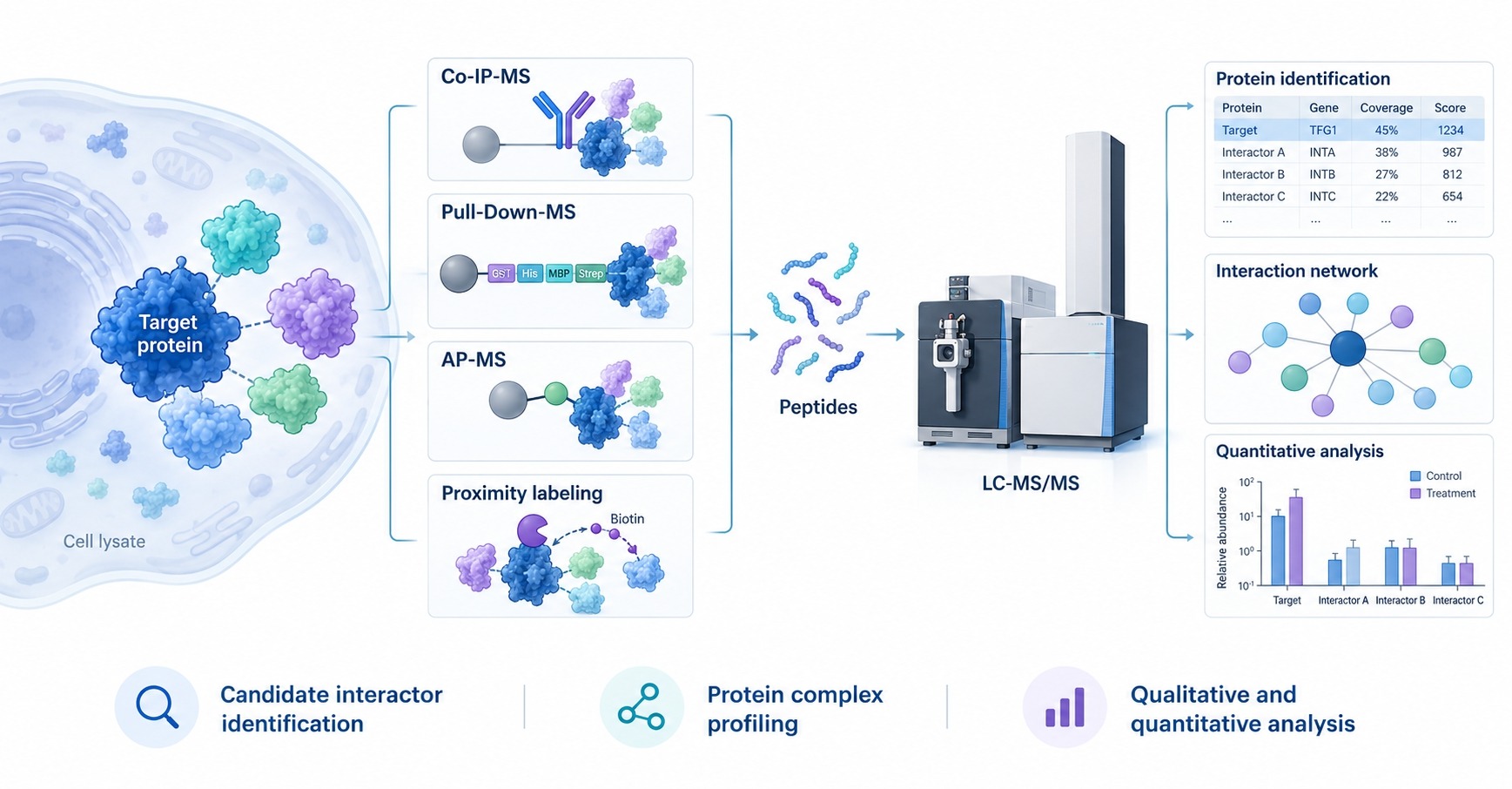

MS-based protein-protein interaction (PPI) analysis combines interaction enrichment with liquid chromatography-tandem mass spectrometry (LC-MS/MS) to identify proteins associated with a target or protein complex.

The approach supports candidate interactor discovery and protein complex profiling. Results depend on the capture strategy, experimental controls, and analytical design.

MS-Based Protein-Protein Interaction Analysis Service at MtoZ Biolabs

MtoZ Biolabs provides affinity-based and proximity labeling approaches for MS-based protein interaction analysis.

1. Affinity-Based PPI Analysis

• Co-Immunoprecipitation Mass Spectrometry (Co-IP-MS):Uses antibody-based immunoprecipitation to enrich a target and its associated proteins.
• Pull-Down Mass Spectrometry (Pull-Down-MS):Uses a purified bait protein, such as a GST-tagged protein, to capture candidate interactors for LC-MS/MS identification.
• Affinity Purification Mass Spectrometry (AP-MS):Uses affinity purification, commonly with a tagged target, to recover associated protein complexes for MS analysis.

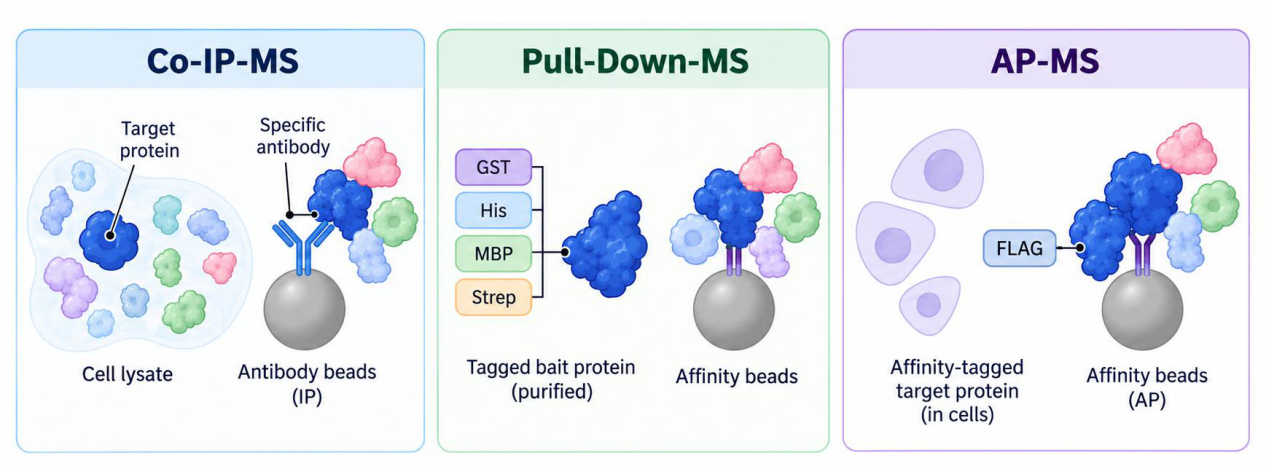

Figure 1. Principles of Affinity-Based PPI Analysis

2. Proximity Labeling-MS

Proximity Labeling-MS labels proteins near a target within a biological system. The labeled proteins are enriched and identified by LC-MS/MS, supporting the analysis of local protein environments and associations that may be difficult to preserve during conventional affinity purification.

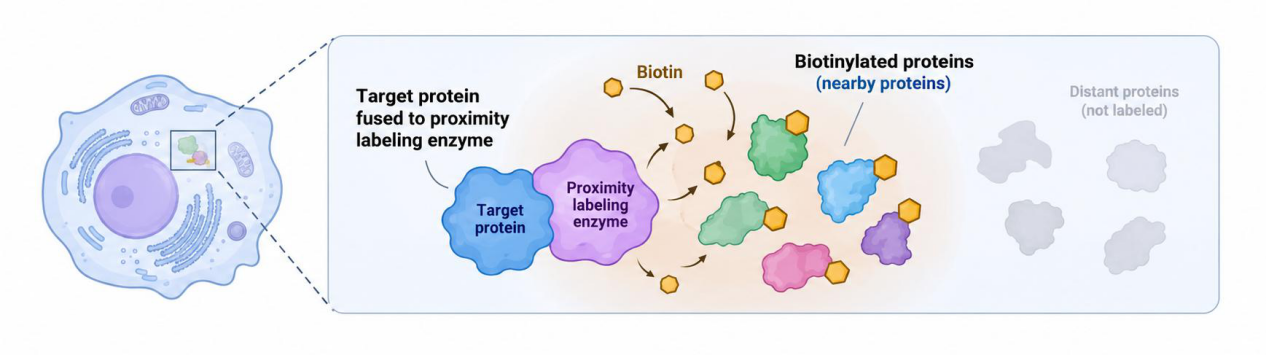

Figure 2. Principle of Proximity Labeling

3. Quantitative Analysis

Quantitative MS strategies can be incorporated into suitable PPI projects to compare target-associated protein enrichment across experimental conditions. SILAC-based Co-IP-MS is an option for studies designed around stable isotope labeling.

Choose the Right MS-Based PPI Analysis Workflow

The most suitable workflow depends on the research objective and the materials available for the experiment.

Research Objective	Recommended Workflow
Identify proteins associated with a target in a biological sample	Co-IP-MS
Identify proteins captured by a purified bait	Pull-Down-MS
Profile proteins associated with an affinity-tagged target	AP-MS
Identify proteins near a target in a biological system	Proximity Labeling-MS
Compare target-associated protein enrichment across conditions	Quantitative MS, such as SILAC-based Co-IP-MS
Analyze a previously enriched interaction sample	Downstream LC-MS/MS analysis

Not sure which workflow fits your study? Contact MtoZ Biolabs with your research objective, target protein, and available materials. Our team can help recommend a suitable MS-based PPI strategy.

Analysis Workflow

1. Project and Sample Assessment

Review the target protein, biological system, available reagents, sample format, experimental controls, and research objectives.

2. Interaction Capture and Enrichment

Perform the selected Co-IP, Pull-Down, affinity purification, or proximity labeling procedure when included in the project. For completed experiments, assess the submitted material for downstream analysis.

3. Protein Digestion

Process enriched proteins through appropriate sample preparation, reduction, alkylation, and enzymatic digestion.

4. LC-MS/MS Analysis

Separate peptides by liquid chromatography and acquire tandem mass spectra using high-resolution mass spectrometry.

5. Database Searching and Data Analysis

Identify proteins and peptides through database searching, with quantitative comparisons or additional bioinformatics when included in the project.

6. Results Reporting

Compile protein identification tables, relevant analytical metrics, processed results, and the project report.

Sample Submission Suggestions

1. Sample Types

Cells, cell lysates, purified bait proteins, IP/Co-IP or Pull-Down beads, eluates, visible gel bands, and enriched protein solutions.



2. Sample Quantity and Handling

• Pull-Down Protein Solutions:Recommended total protein ≥20 μg, with a concentration >0.5 μg/μL.

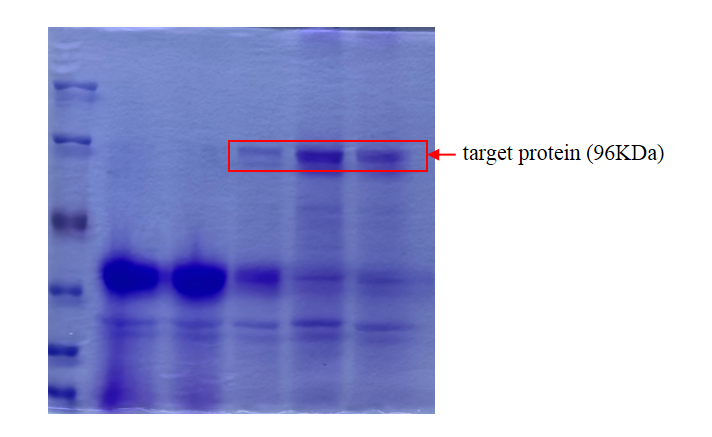

• Gel Bands:Bands should be clearly visible; ship at room temperature or with an ice pack.
• Protein Solutions and Bead Suspensions:Snap-freeze in liquid nitrogen and ship on dry ice.
• Buffer Requirements:Keep SDS below 0.1% in prepared Pull-Down samples. Remove or assess high salt and detergent before submission.

For other sample types or complete interaction experiments, contact MtoZ Biolabs to confirm sample requirements before shipment.



Applications

1. Protein Complex Characterization

Identify candidate components of target-associated protein complexes.

2. Cell Signaling Research

Profile proteins associated with signaling proteins and regulatory complexes.

3. Condition-Dependent PPI Studies

Compare target-associated protein enrichment across experimental groups using an appropriate quantitative design.

4. Protein Function Studies

Identify candidate interactors for subsequent functional investigation.

Why Choose MtoZ Biolabs?

1. Integrated Interaction Enrichment and MS Analysis

MtoZ Biolabs supports complete interaction experiments and downstream LC-MS/MS analysis of previously enriched samples.



2. High-Resolution Mass Spectrometry

High-resolution LC-MS/MS supports protein and peptide identification from interaction-enriched samples.



3. Customized Experimental Design

Capture methods, controls, and analytical settings are selected according to the target protein, available materials, and study objectives.



4. One-Time Charge

Our pricing is transparent, with no hidden fees or additional costs.

Deliverables

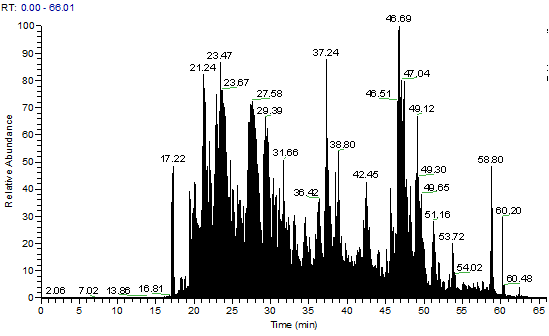

1. Raw MS Data

Original mass spectrometry files.

2. Protein and Peptide Identification

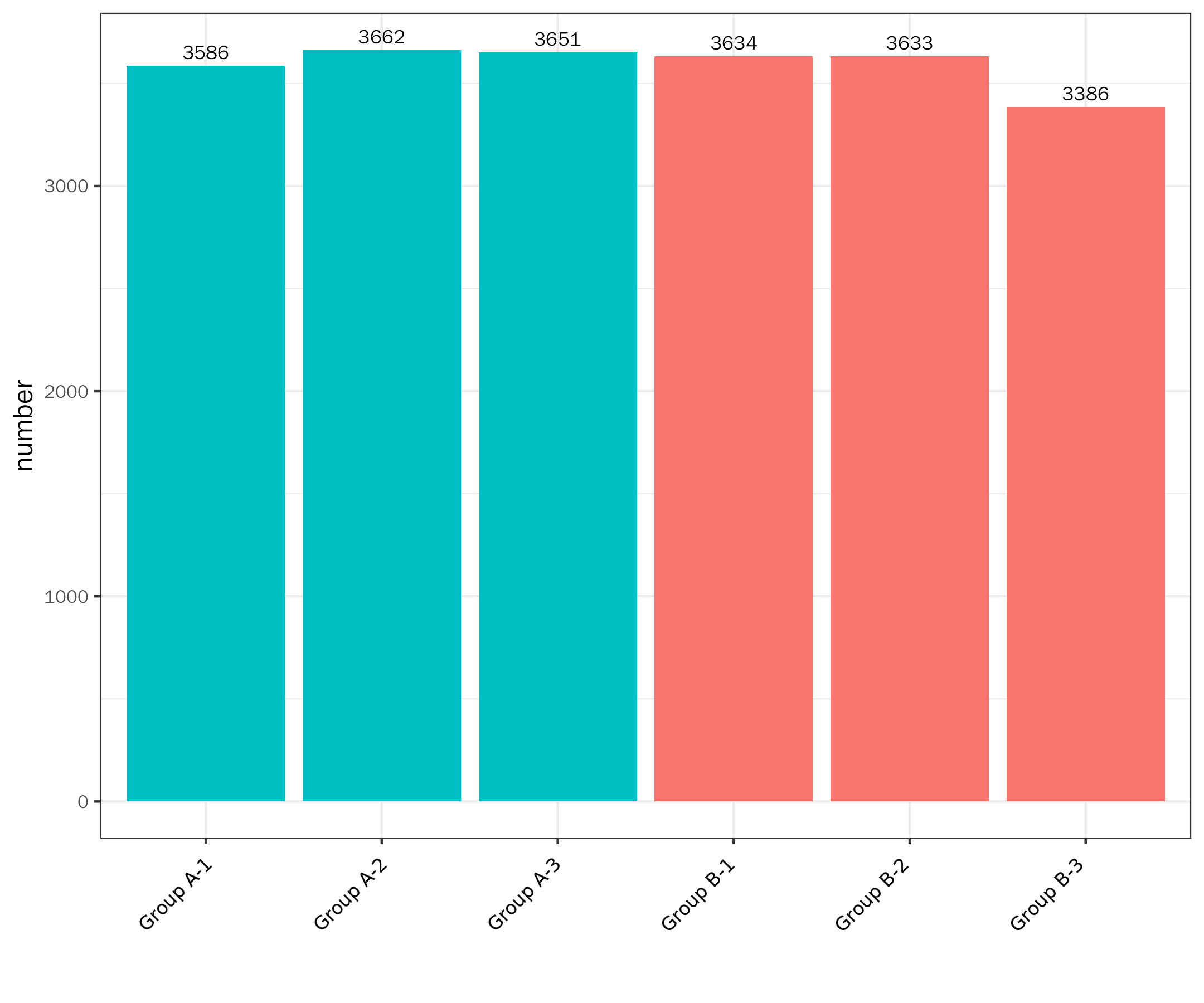

Identification tables containing protein and peptide information.

3. Identification Metrics

Sequence coverage, identification scores, and intensity information where applicable.

4. Quantitative Analysis Results

Comparative results for projects that include a suitable quantitative workflow.

5. Project Report

Experimental methods, analytical parameters, and principal findings.

6. Optional Bioinformatics Analysis

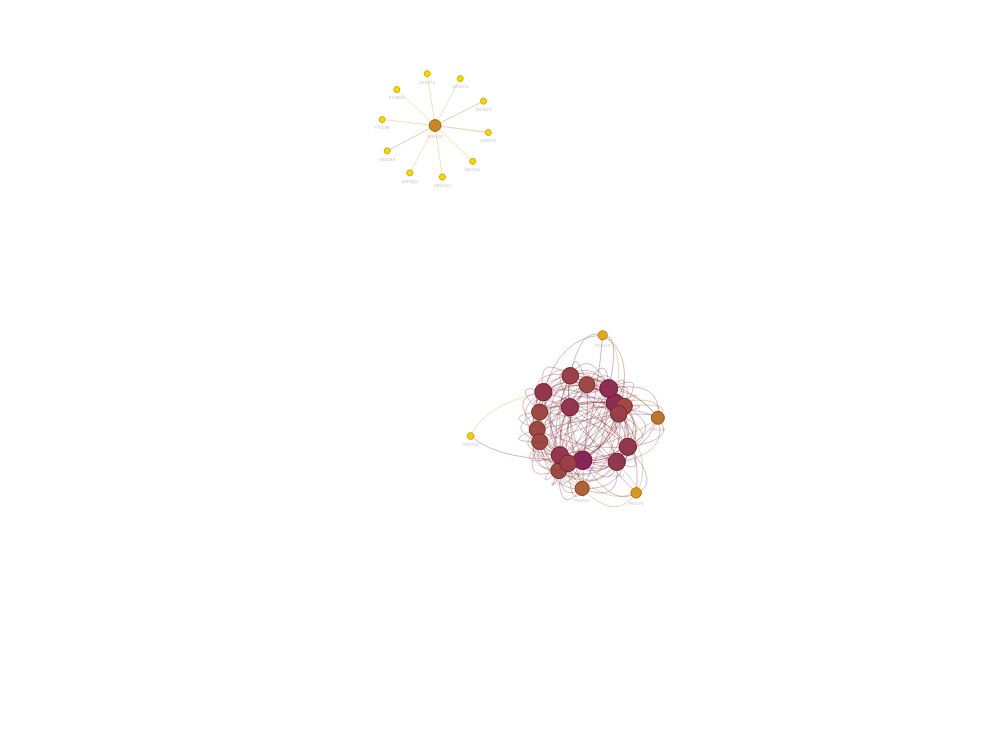

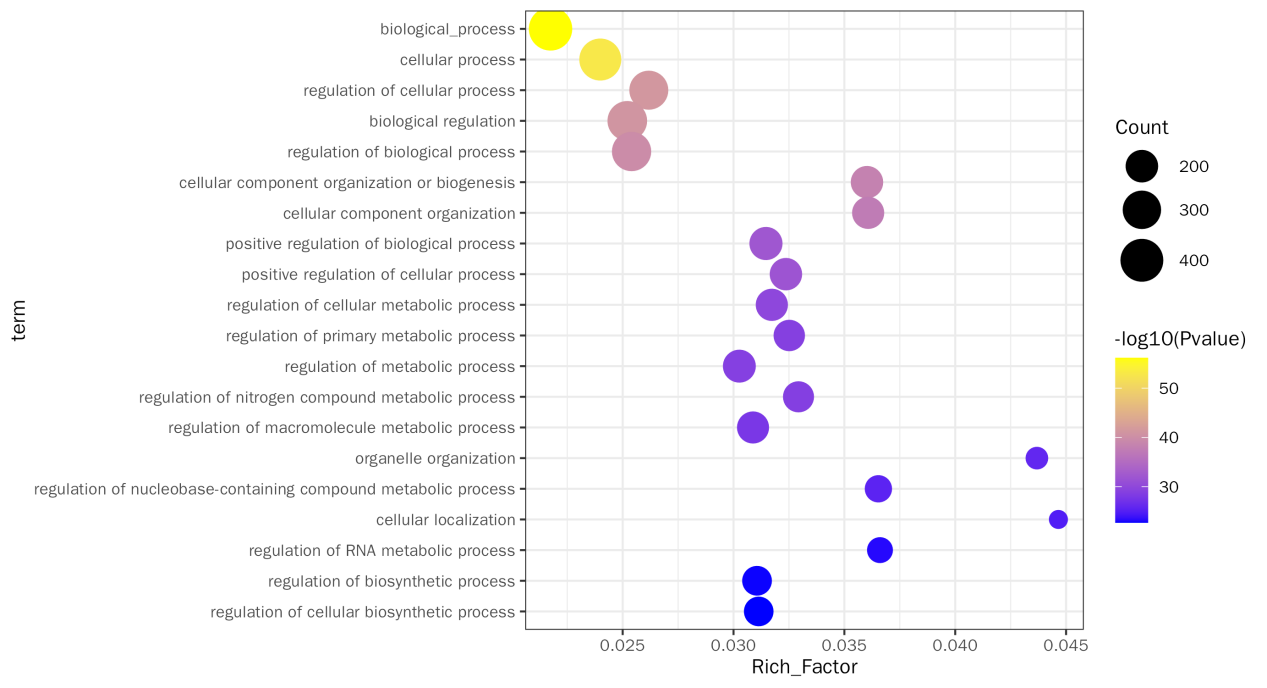

GO/KEGG enrichment or protein interaction network analysis when included in the project scope.



FAQ

Q1. Does a difference in protein abundance between experimental and control groups prove a protein interaction?

No. Differences in protein abundance or enrichment can help identify candidate interactors, but interpretation depends on the capture strategy, negative controls, biological replicates, and quantitative design.



Q2. Can previously completed Co-IP or Pull-Down samples be submitted for MS analysis?

Yes. Suitable IP/Co-IP beads, Pull-Down beads, eluates, visible gel bands, and protein solutions can be assessed for downstream LC-MS/MS analysis. Sample format, protein quantity, buffer composition, and capture method should be provided before shipment.



Start Your Project with MtoZ Biolabs

Have a target protein and a defined PPI research question? Share your target identity, experimental model, available antibodies or bait proteins, and the current status of your study.

If interaction enrichment has already been completed, include the sample format, protein quantity, and buffer composition. For projects still in the planning stage, provide the research objective and available experimental materials so the team can assess the most suitable starting approach.
